Customized services

– FEEL THE BENEFITS OF THE SOFT  WATER –



The biggest problem we all have is hard water. In households, the installation suffers great damage, which increases the cost of water exploitation, and the skin remains dry and the hair loses its luster, thus consuming larger amounts of soap and shampoo. In industry, hard water leaves sediment and damages all equipment.



IN HOUSEHOLDS


With FluidProject’s cabinet systems for partial and complete water softening, you get a permanent and reliable opportunity to reduce the budget for repairing and maintaining home water heaters, faucets, washing machines and dishwashers, coffee machines and similar equipment.

These systems also extend the service life of clothing and utensils, reduce the consumption of hygiene products, and all this with a small investment and without changing the comfort even in small residential areas.



IN INDUSTRIES


In industrial heating and cooling facilities, soft water is an unavoidable standard. Soft water leaves no residue in heat exchangers, steam boilers, pipelines, and other equipment. Soft water is essential in the pharmaceutical industry, printing presses, air conditioners, film development, and many other industries.



HOW IT WORKS



Water softening works by the principle of ion change. The cationic polymer exchanger, housed in a pressure-resistant polyethylene column up to 6 bar, replaces calcium ions with sodium ions.

The ion exchanger regeneration is performed with a NaCl solution (non-iodized tablet salt). The regeneration of these systems is performed automatically, with a timer or flow meter-initiated mode.

The capacity of the softeners ranges from 1 to 20m³ / h. The cyclical capacity of the devices ranges from 2m³ to 70m³. Permanent soft water supply is obtained using duplex systems.





FluidProject’s cabinet softeners have two built-in control levels:



Volumetric control



This control saves on the purchase of funds for regeneration and water. Through automatic addition, followed by a microprocessor, exploitation, and regeneration provide a long service life. Automatic control monitors the water changes required in the household.

Chronometric control



This control gives instructions for ion mass regeneration, depending on the program that can be given one week in advance. Occupational safety and results are identical to volumetric control, especially when water consumption is relatively constant.

Both systems operate at 24V safety voltage.



– CLEAN WATER, BY YOUR STANDARDS AND WISHES –



The quality of the water you use in your home often meets the legal standards for water supply, but that does not mean that it meets your standards and needs.



Typically, water contains dissolved and insoluble substances such as lead, iron, nitrates, chlorine, mineral salts, sulfates, poultry compounds, nickel, and many others. Their concentration cannot be seen with the naked eye. This is only possible with laboratory water analysis.



But the smell and taste of the water can be a good indicator that it’s time to do something with it. Our reverse osmosis systems, made for home use, can solve all these problems.



HOW IT WORKS?



With this system, the incoming water is forced to pass through a very small membrane, through which only pure water molecules can pass.



When there are two liquids in two chambers separated by a membrane with different concentrations of dissolved substances, the process of exchanging water from the chamber with water with less concentration in the chamber with water with a denser concentration, as known as the process of osmosis, begins.



Under the action of a high-pressure pump, this system works on the reverse principle. Through the same membrane, water with a higher concentration of dissolved substances passes through the membrane and is purified.



During the reverse osmosis process, 100% of bacteria and viruses, 99% sulfur, 98% calcium, 98% magnesium, 96% chlorine, and 90% nitrates are removed from your water. Thus, the water you get using this system is ideal for drinking, cooking, and all other household needs.



In addition to passing water through the reverse osmosis system, it is also treated with a 5µ physical pre-filter, a 5µ pre-activated charcoal pre-filter, a 1µ (optional) carbon filter block, and a post-carbon block filter.



During the treatment for filtration of partially turbid water, waste materials (concentrate) are obtained in the amount of 25% of the total volume, and 75% of the volume passes as pure water, ie, permeate. This ratio refers to the amount of pumped water at a pumping pressure of 15 bar. Depending on the quality of the membrane, small amounts of salts can pass through the membrane ranging in the range of 1.5% – 10%.



Special attention should be paid to the fact that the purified water does not contain iron or manganese, because they permanently damage the membrane. Therefore, water containing iron or manganese must always be oxidized and filtered before being released through the reverse osmosis device.



You can process the entire amount of water from which you are supplied, with the central unit for reverse osmosis, or selectively, only drinking and cooking water. The choice is yours.



Most reverse osmosis devices for selective water treatment produce up to 200 to 500 liters of water per day or up to 20l / h.



These systems are ideal for polluted rural water supply, well water, communal water of unregulated quality, production of cosmetics, food, and confectionery industry, medical and dental equipment, and many others.

– WATER STERILIZATION WITHOUT CHANGING THE CHEMICAL COMPOSITION –



This type of sterilization performs 99.9% water sterilization. In the sterilization procedure, the water first passes through a physical purification system with a permeability below 25 µ and then through an antibacterial chamber with a UV lamp.



Modern UV sterilization devices operate connected to a pressure grid. Practical tests and monitoring of such systems in operation give satisfactory results in the bacteriological treatment of drinking water. The resistance of microorganisms to the lethal dose of UV radiation is different and ranges from the following limits:



[µJ/cm²]



  8500   | Agrobacterius tumefaciens

  2500   | Bacillus megaterium (vegetative)

52000 | Bacillus megaterium (spores)

 11000 | Bacillus subtilus (vegetative)

58000 | Bacillus subtilus (spores)

  8700  | Bacillus anthracis

21000 | Polio virus (Poliomyelitis)

  6600   | Bacteriophage (E. Colli)

88000 | Penicilium digitatum

35000 | Mucor remosissimis

88000 | Aspergillus glaucus

22000 | Clostridium teteni

  8000   | Hepatitus virus

  6600   | Influenca virus

24000 | Rotavirus



The principle of operation consists of the antibacterial action of ultraviolet radiation which, through quartz protective glass, comes into direct contact with thin layers of water. In addition, water, as a major absorber of ultraviolet radiation, increases the success of sterilization by stratifying the jet of water passing through the ultraviolet sterilizer. Of great importance for the safe operation of the device is the amount of suspended matter in the water.



FluidProject produces UV sterilizers with a capacity of 0.5 to 50 l / s and a working pressure of up to 9 bar. We also have original spare parts, as well as professionals available for consulting and service. The capacities of 1, 2, and 2.5 liters are in serial production, while the other capacities are made by order.



HOW UV LIGHT WORKS?



The range of uses of UV light is very wide and is used for: disinfection, photooxidation (Cl2, H2O2, O3), TOS-reduction, and Ozone-reduction. The wide range of UV waves, especially the part of the spectrum between 240 and 250 nm with a critical concentration of UV waves, affects the reproductive range of proteins.



BENEFITS OF USING THIS DEVICE



The extent between investment and the cost of operating a UV lamp system is far more favorable than standard drinking water sterilization systems.



There is a possibility of installation in front of the user’s place, which avoids all pollution in the user’s water supply network. The price of the device is affordable and guarantees a successful operation. Electricity consumption is low and there is a standard connection to the city’s electricity grid.



The device is simple to operate and maintain, and the time required and the sterilization process is short. The device can also operate at very low flows. Sterilization with a UV lamp is a real solution to the current problems of individual buildings that are supplied with water from wells. The average service life of lamps is between 9000 and 15000 working hours.



Most importantly, the device has no effect on the chemical composition of the water.

– FULL DESIGN, CONSTRUCTION, SERVICE, AND MAINTENANCE –



In our experience of more than 25 years, the standards for the performance of domestic and commercial pools are growing along with our professionalism and readiness. With our extensive experience in this field, we are proud and pleased to offer you all types and shapes of pools, materials, and equipment from leading companies for pool equipment, as well as regular service and maintenance of equipment and your pool.



Our consulting services will help you make the right decisions about the location of your pool, as well as the shape, color, pool design materials, lighting, water effects, and many more options that can be incorporated into pool construction. Our professional team will help you improve your pool and reflect your lifestyle.



Whether you have a desire for an underground or overhead pool, round or angular in shape, paved with pool tiles, or coated with pool foil from our really large assortment and many other different variants, our team will help you make your wishes come true.



In addition to designing and constructing pools, we also offer maintenance and regular service of the entire pool equipment, with original equipment, by a team, trained according to the criteria of the manufacturers of the appropriate equipment.



We also offer the possibility of monthly maintenance of your pool. The offer includes a visit (once a week) to your pool where the following activities are performed: quality control of pH, checking and adjusting the residual chlorine, washing the sand filter with a return jet, cleaning a rough prefilter, brushing the side surfaces of the pool, the suction of impurities from the bottom of the pool with a water absorber and replenishment of the pool. This offer is available for only 4000 MKD (chemical prices are not included in the price).

– CAPACITY BUILDING: INVESTING IN THE FUTURE –

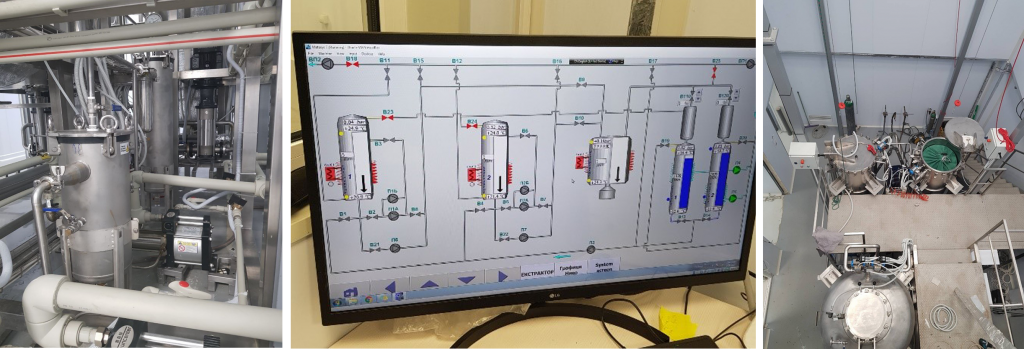

     1. CANNABIS OIL EXTRACTION SYSTEM





Cannabis growing expands all over the Balcan countries last 6-7 years. Faced with huge production of raw material, some companies increase their business in supply equipment for extracting the final product, cannabis oil. Using this experience and ability, Fluid Project offer and install several complete systems. The largest one is presented here:



Method of extraction: Freon R134A.

Capacity of single phase: 100 kg of dry cannabis plant.

Number of phases per day: 5.

Freon recovery: 99,5% per phase.

Installed power: 100 KW.

Staff required: 4 technicians.

Investor: Tetrahip – Macedonia, 2022.





1.	CANNABIS OIL EXTRACTION SYSTEM

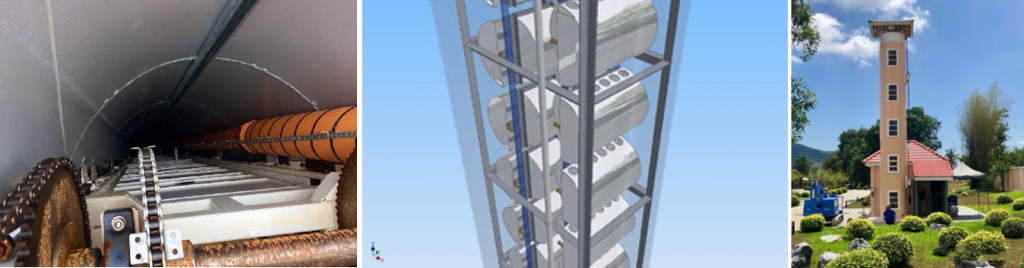

     2. KINETIC POWER PLANTS



Clean energy will be the top priority for our future. One of alternative ways to produce the electric power is using kinetic power produced by buoyancy. Fluid Project offer supply and installation of kinetic power plants, manufactured by Ki-tech Global company in support of Rosch Company. KPP offers a steady baseline supply of green energy, free from emissions and toxic waste product. The system provides continuous power regardless of location and weather conditions. System operates by the kinetic power plants principals, developed and patented by Ki-tech. Basic technological steps are the following:



Lifting force

Pneumatic system

Generators

Electromagnetics



Installed power range: 5-500 KW. Combination of modules is widely implemented, and larger power is possible.





Kinetic power plants





     3. LIQUID NITROGEN PRODUCTION



Nitrogen is already widespread enough as an alternative fuel in internal combustion engines. Its advantage is that it does not leave any harmful products in its combustion and thus it is seen as a clean fuel.



Technical problems around production, storage and distribution are problems that need to be solved in the near future.



One of the ways of hydrogen production is membrane processing of pure water.



With its many references and experience in the production of ultrapure water, Fluid Project is well on its way to start production of liquid hydrogen, which would be further distributed in tanks. Together with the installation of alternative sources of electricity, the ecological circle of obtaining clean energy would be closed.







LIQUID NITROGEN PRODUCTION
